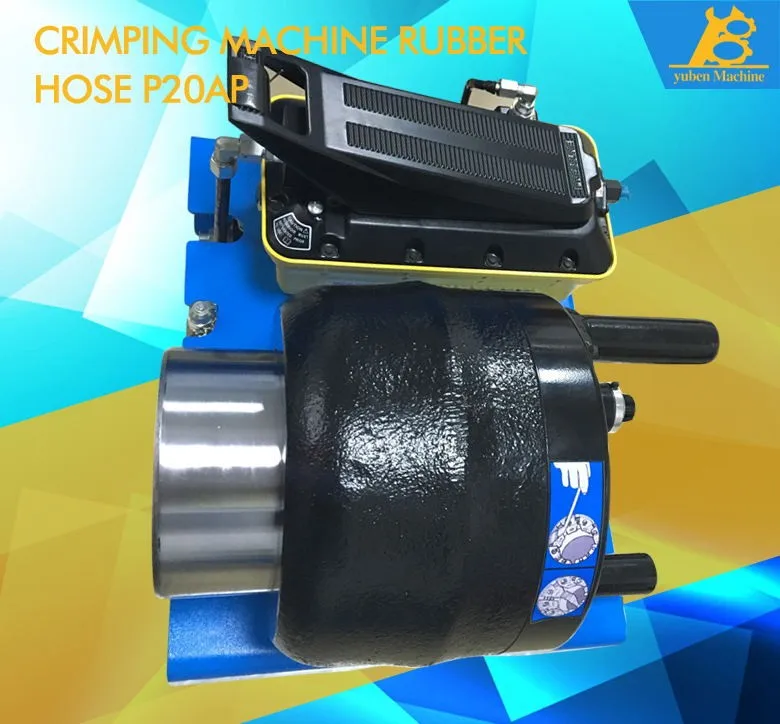

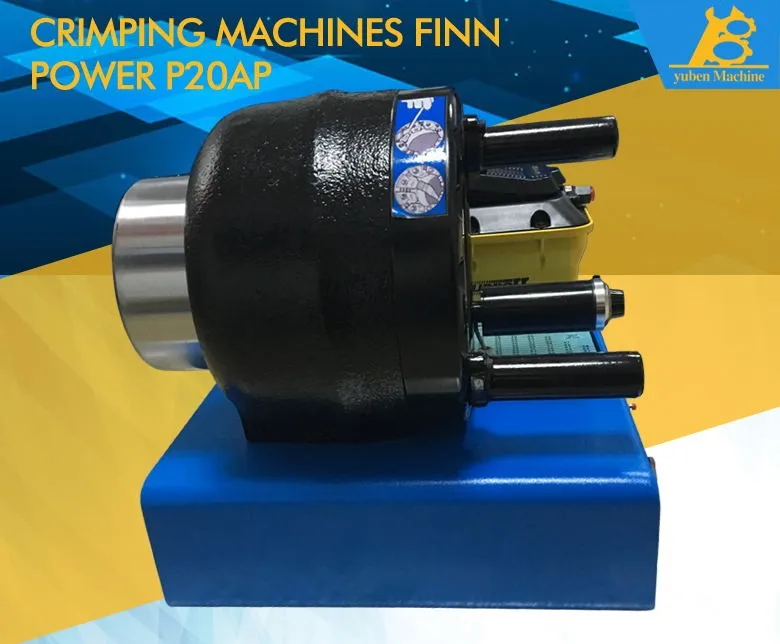

YUBEN CRIMPING MACHINE, MOEDEL: P20AP
P20AP
YUBEN_CHINA
12 Months
Quick Details
Condition: New
Place of Origin: Guangdong, China (Mainland)
Brand Name: YUEBEN
Model Number: P20AP
Voltage: Air
Power(W): Air
Dimension(L*W*H):550(L)*450(W)*380(H)mm
Weight: 75kg
Certification: SGS
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Product type: Hydraulic Crimping Tools
Crimping range: 10 - 61mm
Crimping force: 173 tonnage)
Hose size: one and half inches
Control: manual
Motor: Air pressure
The specification of Hose crimping machine P20AP as below:
| Hose crimping machine | |
| Model | P20ap |
| Crimping range (mm) | 10 – 61 |
| Crimping range (inches) | 0.39 – 2.40 |
| Crimping force (kN) | 1370 |
| Crimping force (tonnage) | 173 |
| Crimpings / hour | ---- |
| Hose size (inches) | 1½ |

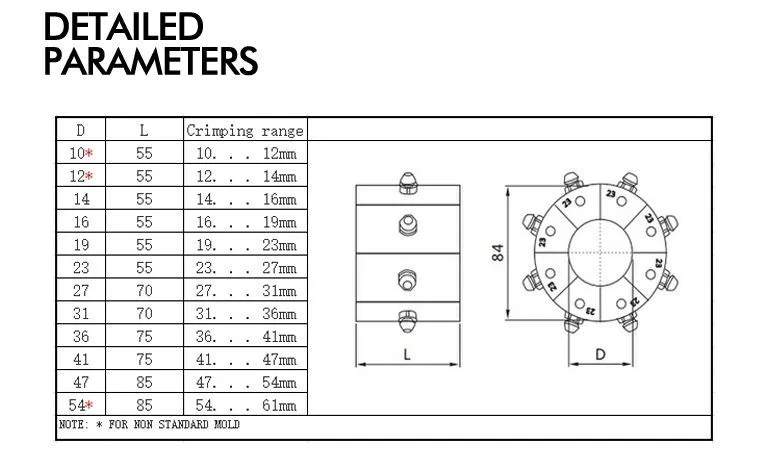

| Die set | P20 |
| Max. opening (mm) | +25 |
| Master die D / L (mm) | 84 / 80 |
| Master die D / L (inches) | 3.31 / 3.15 |
| Control | manual |
| Motor (kW) | Air pressure |
| Motor (HP) | Air pressure |
| QC tool | — |
| Pedal | — |
| Control unit | X |
| Back stop device: electric | — |
| Mirror | — |
| Length (mm) | 550 |
| Width (mm) | 380 |
| Height (mm) | 380 |
| Length (inches) | 21.6 |
| Width (inches) | 15 |
| Height (inches) | 15 |
| Weight (kg) | 80 |
| Total Weight (kg) | 105 |
