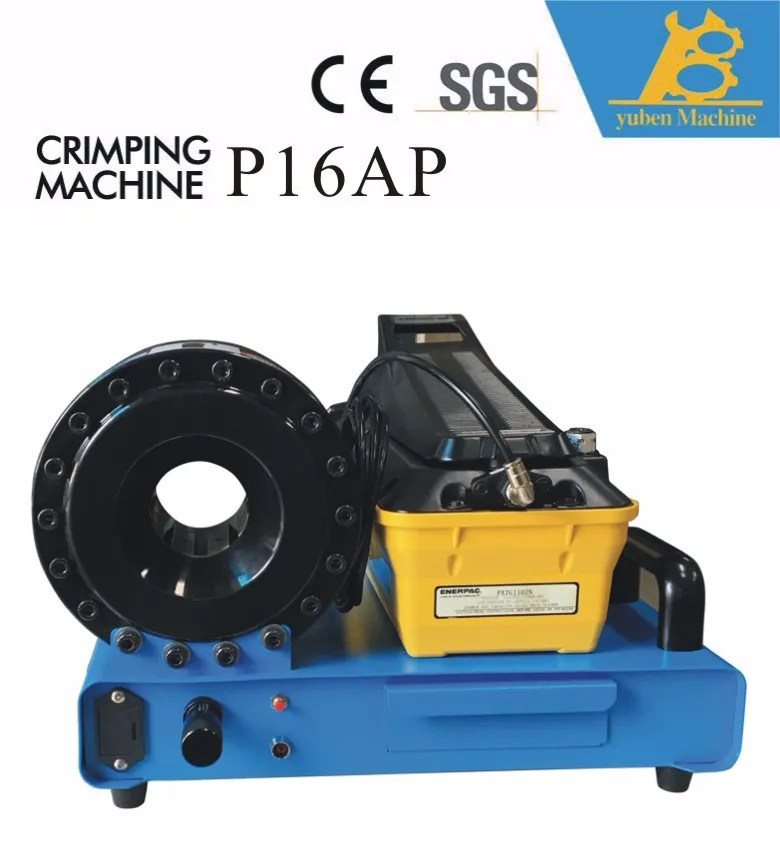

YUBEN CRIMPING MACHINE, MODEL: P16AP

(1 đánh giá)

Mã sản phẩm : P16AP

Xuất xứ : YUBEN_CHINA

Bảo hành : 12 Months

Name: automatic wire cutting crimping machine Model: P16AP Voltage: Air pressure Power(W): Air pressure Dimension(L*W*H):470(L)*400(W)*350(H)mm Weight: 39, 39KG Certification: SGS Warranty: One Year Color: Blue Dies: 6 Sets Hydraulic Hose: 1'' 2SN Control System: Air Pressure Controller

Detail

CRIMPING MACHINE P20HP

The specificaion of manual high pressure hose crimper P16AP as below:

Model	P16ap
Crimping range (mm)	10 – 45
Crimping range (inches)	0.39 – 1.77
Crimping force (kN)	955
Crimping force (tonnage)	137
Crimpings / hour	----
Hose size (inches)	1
Die set	P16
Max. opening (mm)	+20
Master die D / L (mm)	39 /64
Master die D / L (inches)	1.54 / 2.52
Control	manual
Motor (kW)	Air pressure
Motor (HP)	Air pressure
QC tool	—
Pedal	—
Control unit	X
Back stop device: electric	—
Mirror	—
Length (mm)	331
Width (mm)	401
Height (mm)	271
Length (inches)	13.1
Width (inches)	15.7
Height (inches)	10.7
Weight (kg)	28
Total Weight (kg)	38
