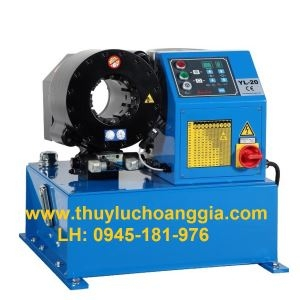

YEONG LONG CRIMPER YL-20

(1 đánh giá)

Mã sản phẩm : YL-20

Xuất xứ : YEONG LONG_TAIWAN

Bảo hành : 12 Months

Our YL-20 is for 11/4’’ workshop crimper which the crimping force attain to 1700kN, we will be attach the 9 set standard dies set from 10, 13, 16, 19, 22, 26, 30, 39, 45mm. The user can be easily installed the standard dies set and subtly adjusted the dimension for their need on control panel. *For our YL-20/ YL-20S and YL-32 workshop crimpers can be installed in maximum 78mm dies set.

Detail

Hydraulic Crimping Machine

Worshop Crimper YL-20

YL-20 YL-20S和YL-32 幾乎適用於車間及一般五金店面使用。扣壓範圍從4mm至2’

Our YL-20 is for 11/4’’ workshop crimper which the crimping force attain to 1700kN, we will be attach the 9 set standard dies set from 10, 13, 16, 19, 22, 26, 30, 39, 45mm. The user can be easily installed the standard dies set and subtly adjusted the dimension for their need on control panel.
*For our YL-20/ YL-20S and YL-32 workshop crimpers can be installed in maximum 78mm dies set.

TECHNICAL DATA

最大扣壓管徑	Max Hose Size	1 1/4"
扣壓範圍 ( mm )	Crimping Range ( mm )	ψ4…ψ87
模具型號 ( mm )	Die Type	32
模具擴張度	Max. Opening ( mm )	+26
主要模具長度	Master Die ( Die / Length )	80
馬達 ( kW )	Motor ( kw )	3.6
電壓 ( v )	Voltage ( v )	220 / 440
泵浦 ( 1/min )	Pump ( l/min )	11.5
扣壓力 ( kN )	Crimping Force ( kN )	1700
扣壓量 ( 每小時 )	Crimping Hour	1800
噪音值 ( dB(A) )	Noise level ( dB(A) )	71
保護等級	Protection Class	IP54
尺寸：長 ( mm )	Size : Length ( mm )	610
寬 ( mm )	Width ( mm )	600
高 ( mm )	Height ( mm )	600
重量 ( kg )	Weight ( kg )	200
